In the past few weeks I have been working on creating a XAF wrapper module for Quartz.Net v2 which is is a full-featured, open source job scheduling system that can be used from smallest apps to large scale enterprise systems.
For those who are not familiar with concept of job scheduling, here is some background information. Also, there great tutorial for Quartz, which will give you a good and necessary introduction
Quartz default implementation
Quartz supports several datastores (sqlserver,ce,mysql,imemory etc) that you can utilize by providing an appropriate connection string, same as XPO.
It has a decoupled architecture with just 2 basic entities (JobDetails and Triggers) which are related by Group property. For instance you can create a number of JobDetails, set its Group to “LongRunning”, than create a Trigger with the same Group property. When the trigger is executed, all jobs for that group will run.
There is also a JobDataMap which represents a dictionary that holds serialized values and is used for jobs-triggers communication. You fill it with data when you create a trigger or a job and when they are executed you get that values back for further use.
JobDetails holds a reference of the Type that implements the Quartz.IJob interface where you put the code specific to your job. Quartz instantiates that type using reflection and runs its Execute method using the context parameter that passes all available information (Scheduler instance, JobDataMaps, etc.)
Xpand JobScheduler Domain description

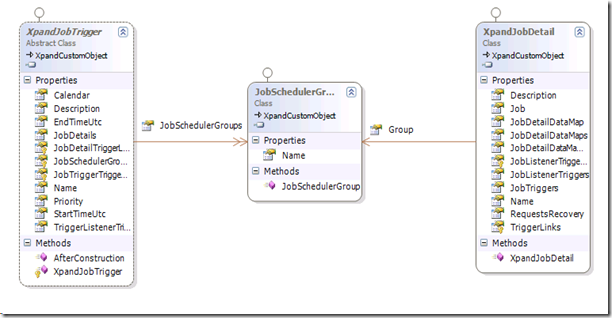

First of all we have the same basic entities XpandJobDetail, XpandJobTrigger. A JobSchedulerGroup was introduced to achieve the default quartz relationship as shown below:

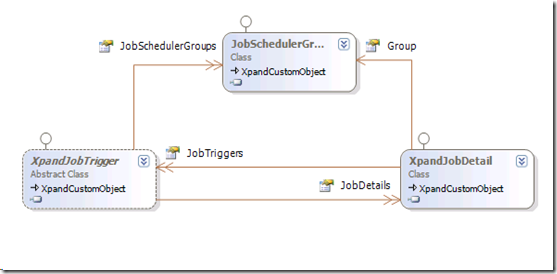

Additionally a many to many relationship between XpandJobDetail and XpandJobTrigger has been added allowing you to associate triggers, and jobs (even if they not belong to any group).

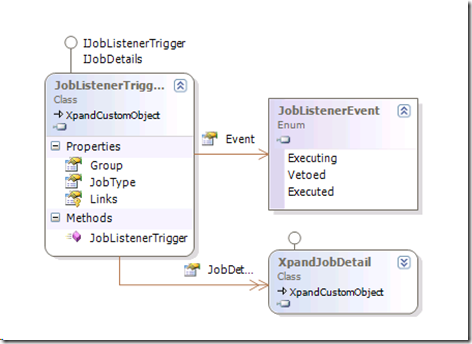

A new type of trigger the JobListenerTrigger was introduced in order to be able to trigger a job after an event of another job was executed
Now our XpandJobDetail stores a reference to the Quartz.IJob interface using the Persistent XpandJob object (the same way Quarz does). However, one would have to decorate this class with JobDetailDataMapType or JobDataMapType attribute in order to tell XAF which XpandJobDataMap to associate with the XpandJobDetail or XpandJob And, as you already guessed, JobDataMap, that is dictionary instance for Quartz, is populated from XAF persistent classes.
Bellow you see the sample ThresholdCalculationJob provided by Xpand.ExpressApp.JobScheduler.Jobs assembly:
The scripts that create a Quartz database can be found in eXpand sources under Resource/Quartz folder. Quartz database has to be created in order to run the demo from FeatureCenter.
To give you a better idea about above mentioned functionality and to show what the sample application (Feature Center in this case) that uses JobScheduler module may look like, here is a short screen cast:
You can d/l eXpand Framework latest version from http://expandframework.com/downloads and sent use your feed back at our forums
